Perspectus 60 PRM2143X-V Evaluation Kit

EVK2143X-V

+Overview

The EVK-PRM2143X provides a platform for comprehensive evaluation of the PRM2143X RF/mmWave transceiver module in Peraso's Perspectus series of modules. The EVK-PRM2143X utilizes Peraso's high-power X720 chipset and is supported by Peraso's Perspectus Infrastructure software and firmware packages.

The RFIC provides 16 RF chains with high transmit power levels and supports all six of the 802.11ad defined channels. Channels 5 and 6 are outside the oxygen-absorption band, thereby allowing for long-range operation. Selectable RF filters allow it to also support half-bandwidth channels.

The PRM2143 scan range makes it ideal for use in outdoor point-to-point networks or as clients in point-to-multipoint networks.

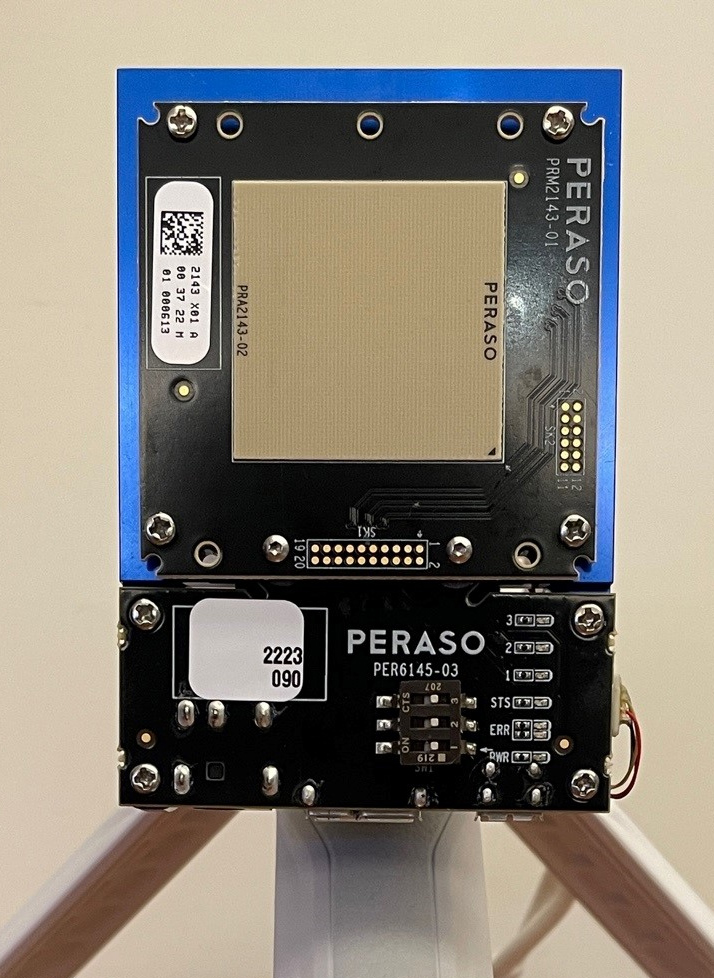

Peraso EVK-PRM2143X-V evaluation kit
+Specifications

Product details

PRM2143X
Status
In production
Baseband
PRS4601 (802.11ad)
RFIC
PRS1165
Antenna Array
64-element. V-pol
Max EIRP
44 dBm
Antenna Gain
22 dBi
Scan Range
±20° azimuth
±20° elevation
System Interface
USB 3.0
Power
Tx: 13 W
Rx: 5 W
OS Support
Linux
Windows
+Details

Applications & kit contents

Applications

  • Point-to-multipoint Fixed Wireless Access networks
  • Point-to-point backhaul / fiber alternative

Kit contents

ItemPart numberDescription
EVB-PRM2143Box 1

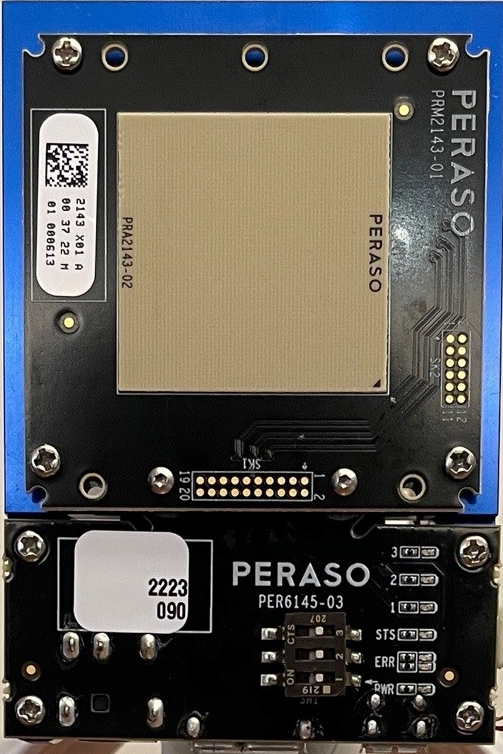

Fully assembled evaluation board. Includes:

  • Perspectus Module
  • Adaptor PCB – PER6145
  • Heatsink with fan
Evaluation Kit AccessoriesBox 2
  • AC/DC desktop adapter 5V 20W
  • Power Cord Black (2.15m) North America
  • USB A male to USB Micro B male

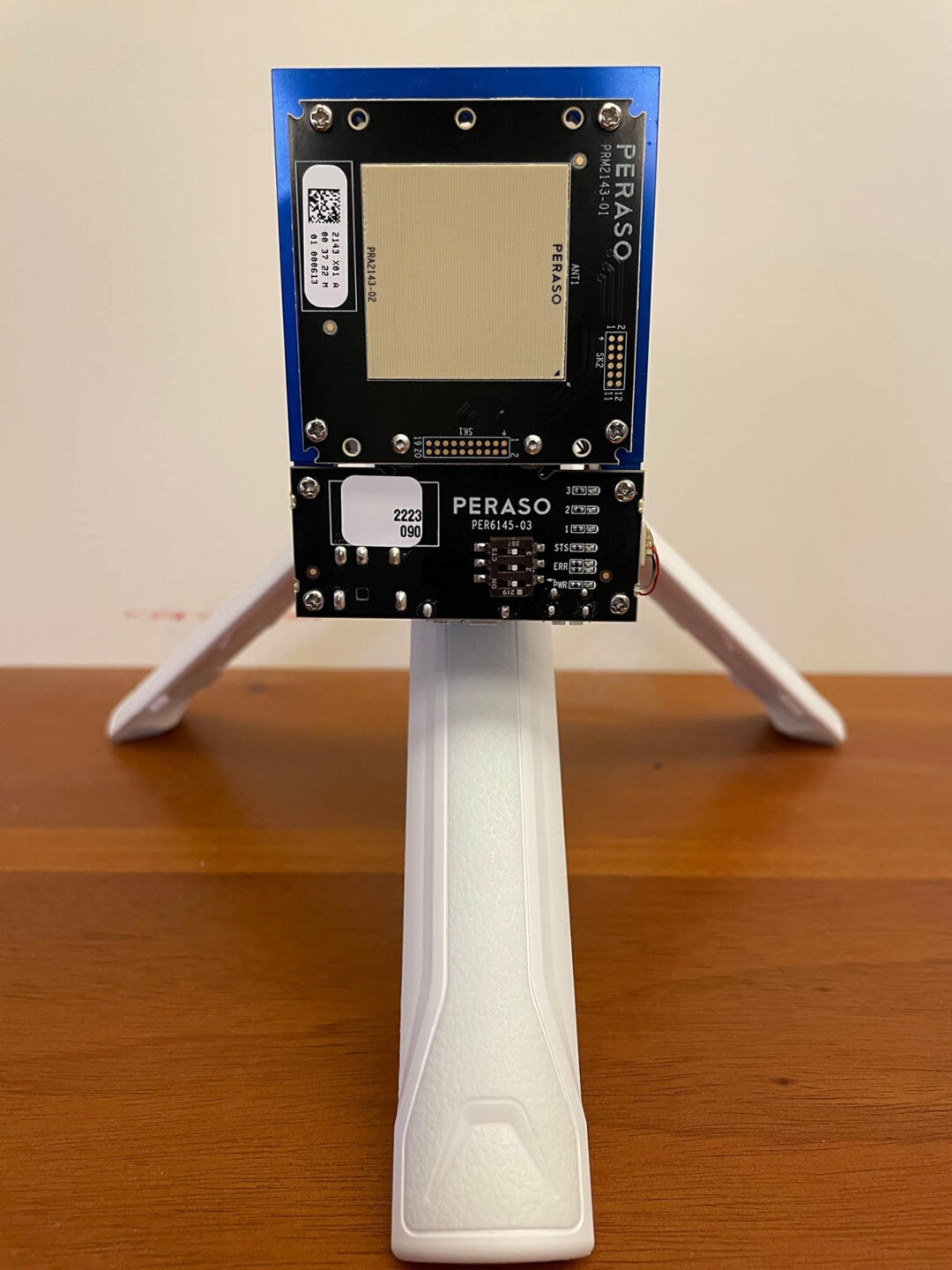

TripodBox 3

Compact and portable tripod for mounting
